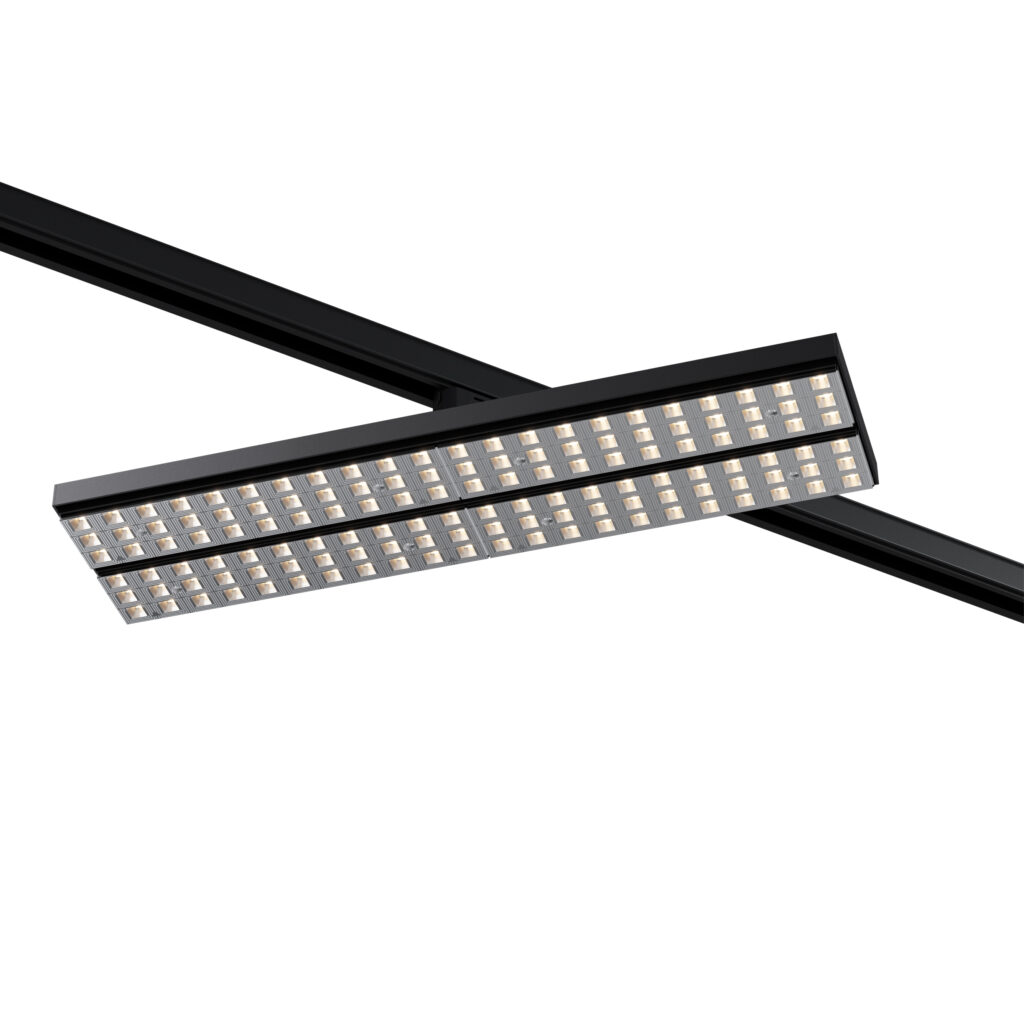

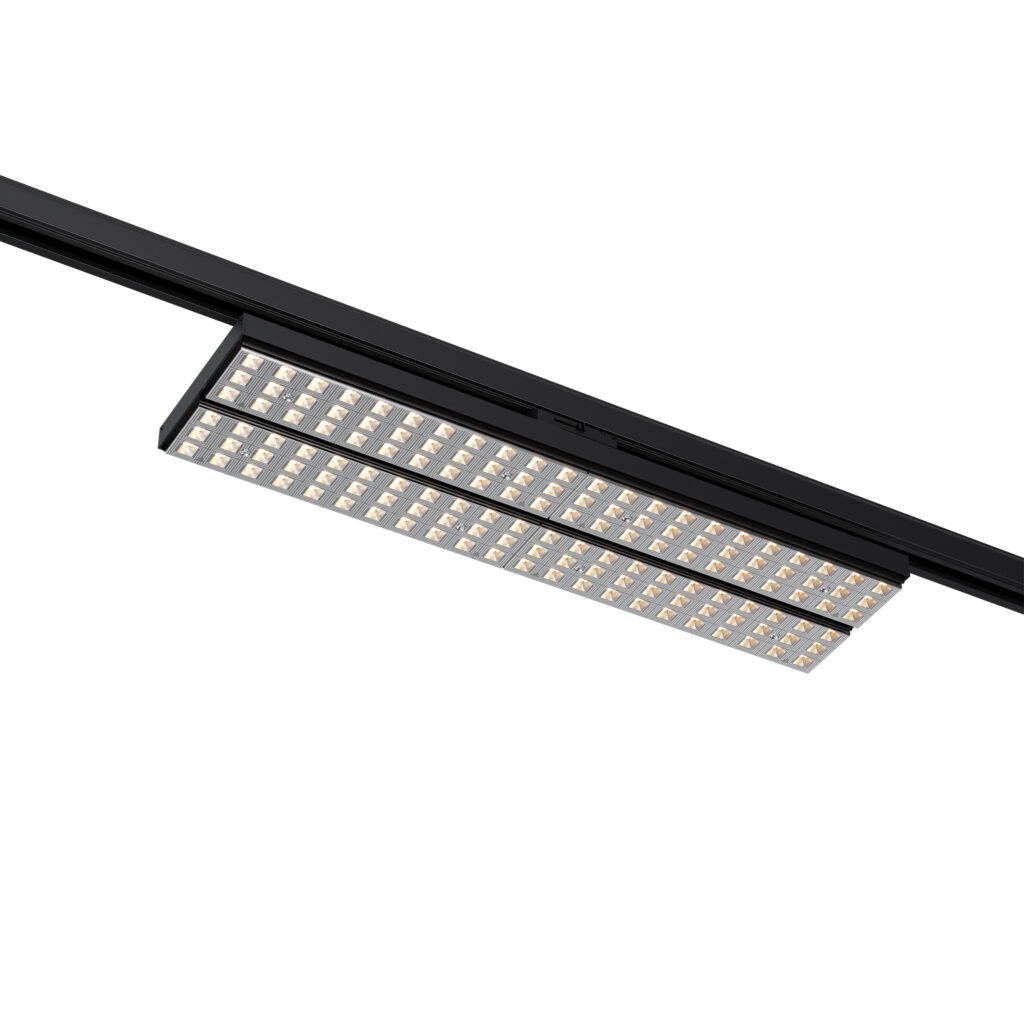

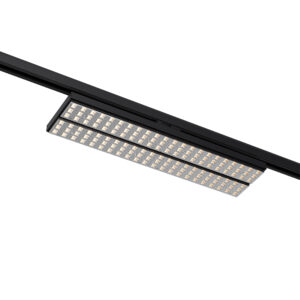

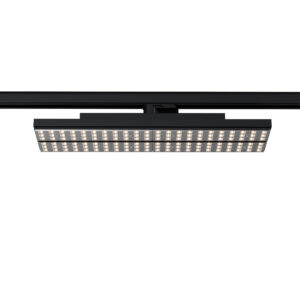

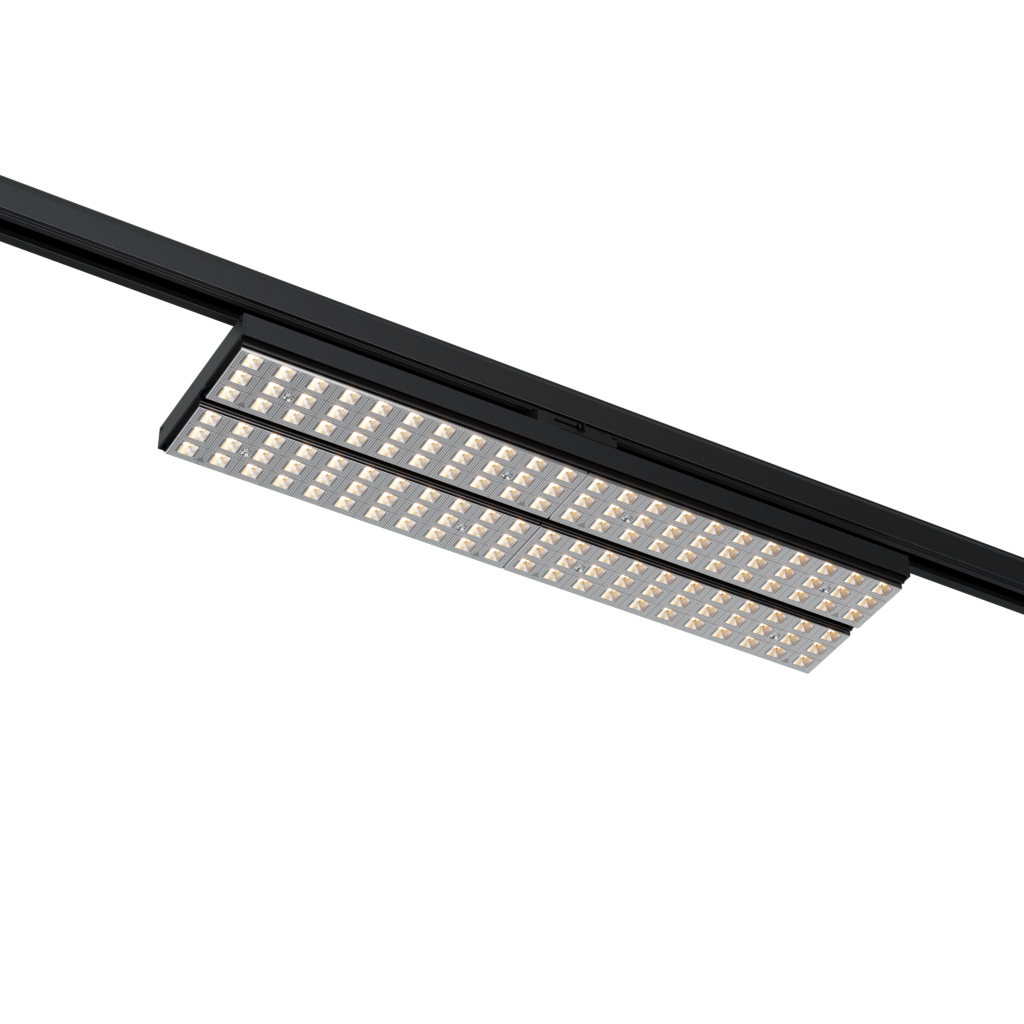

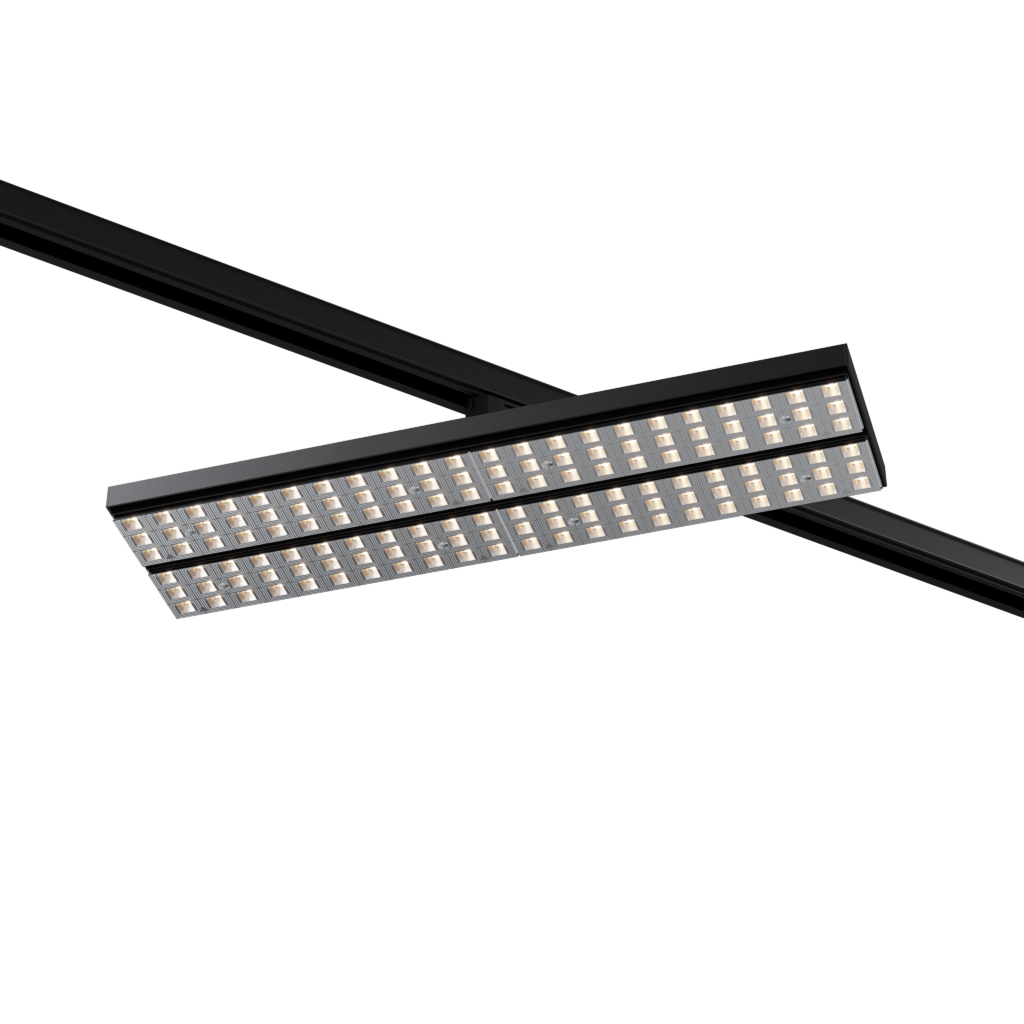

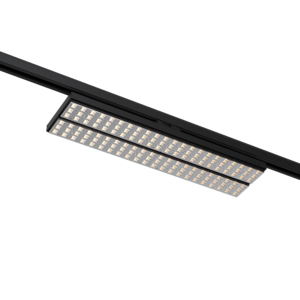

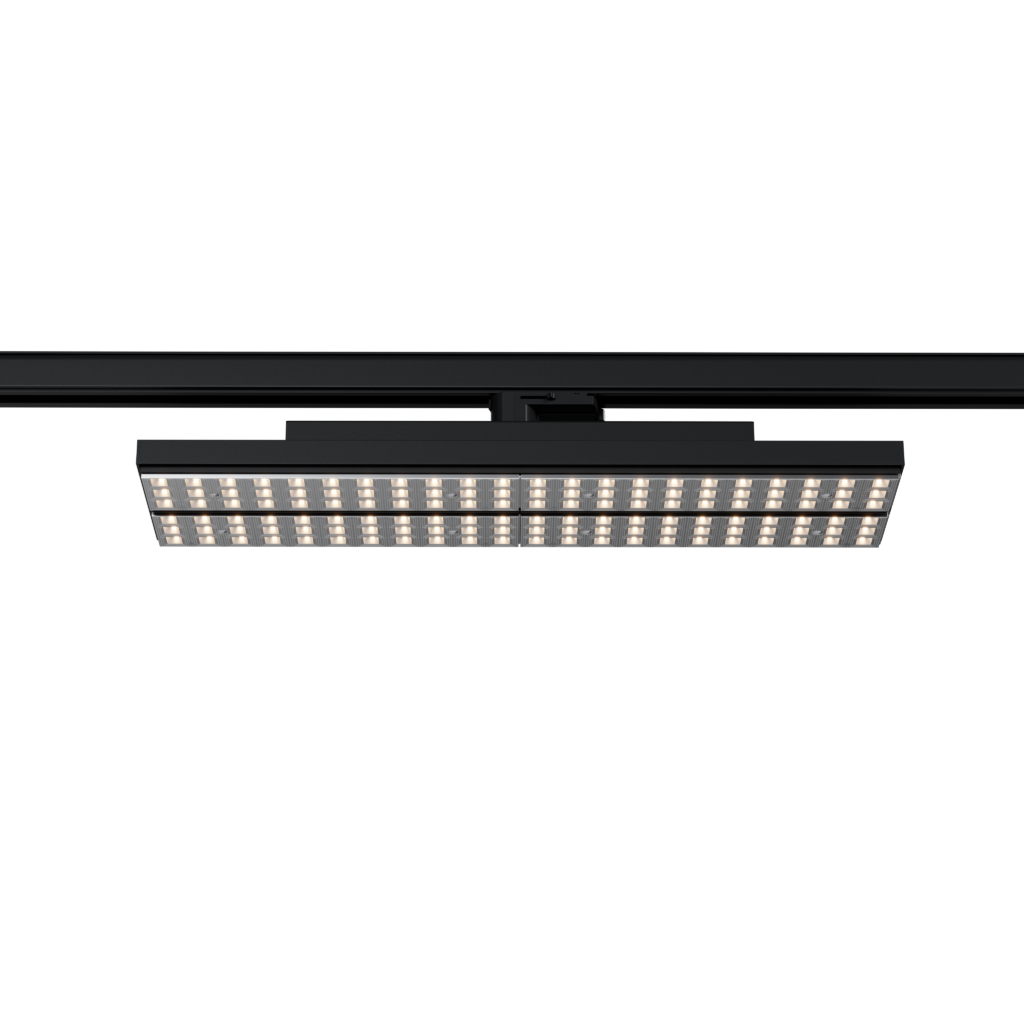

Plano 2.0 Space
Color
- Black RAL 9005, White RAL 9016, On request

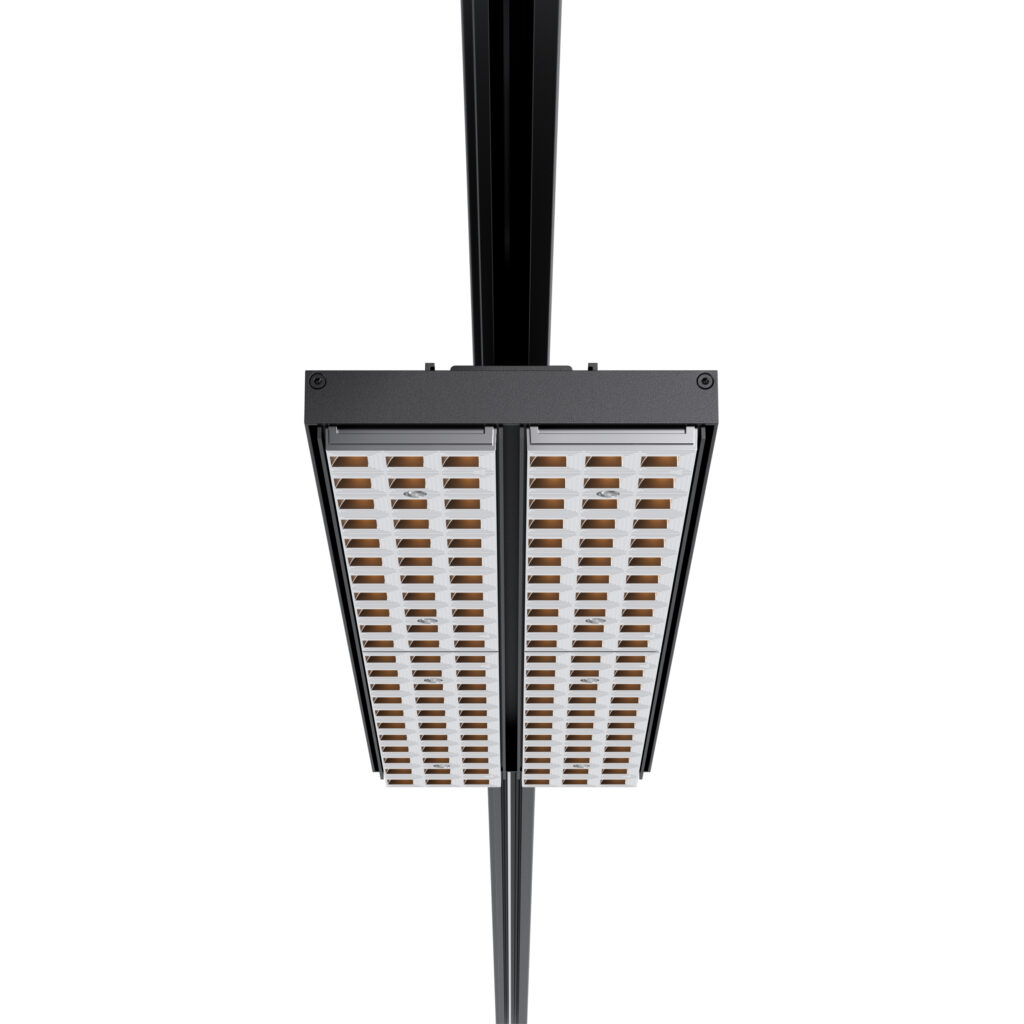

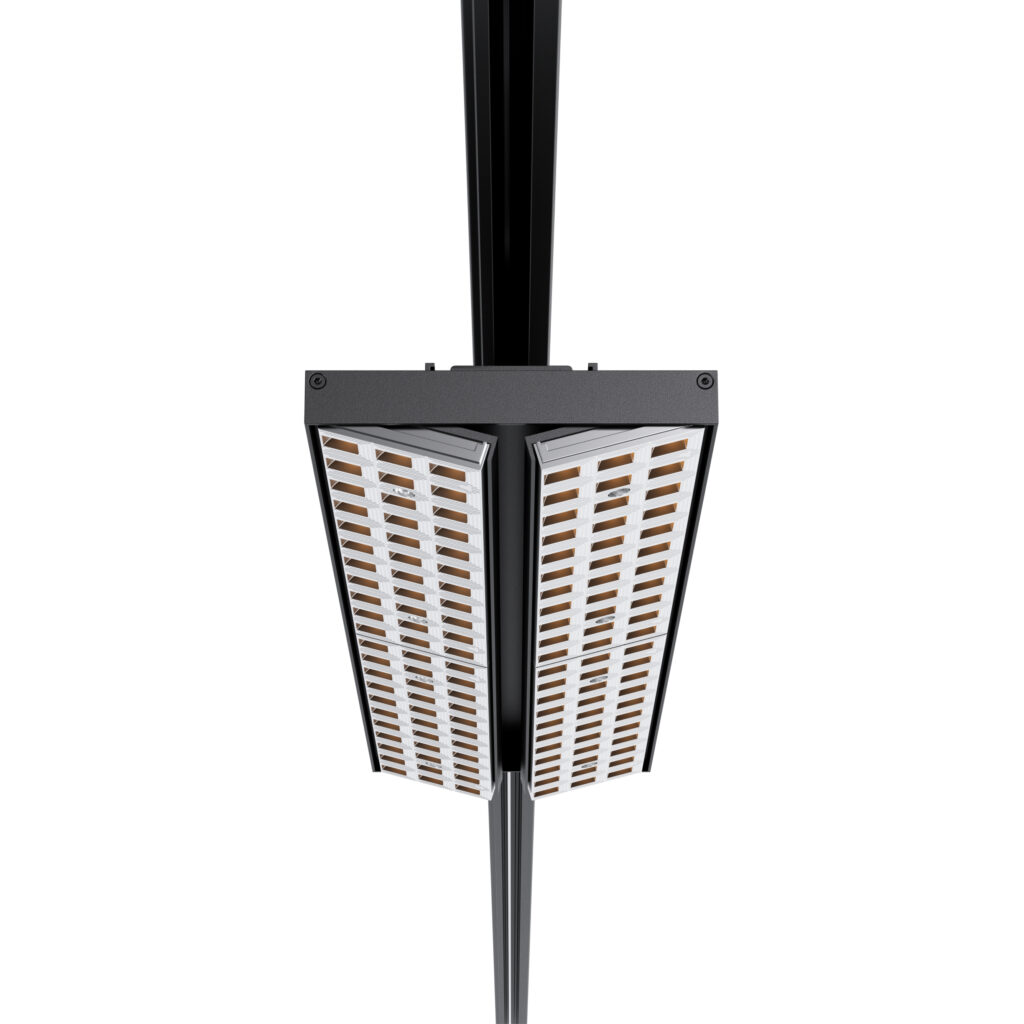

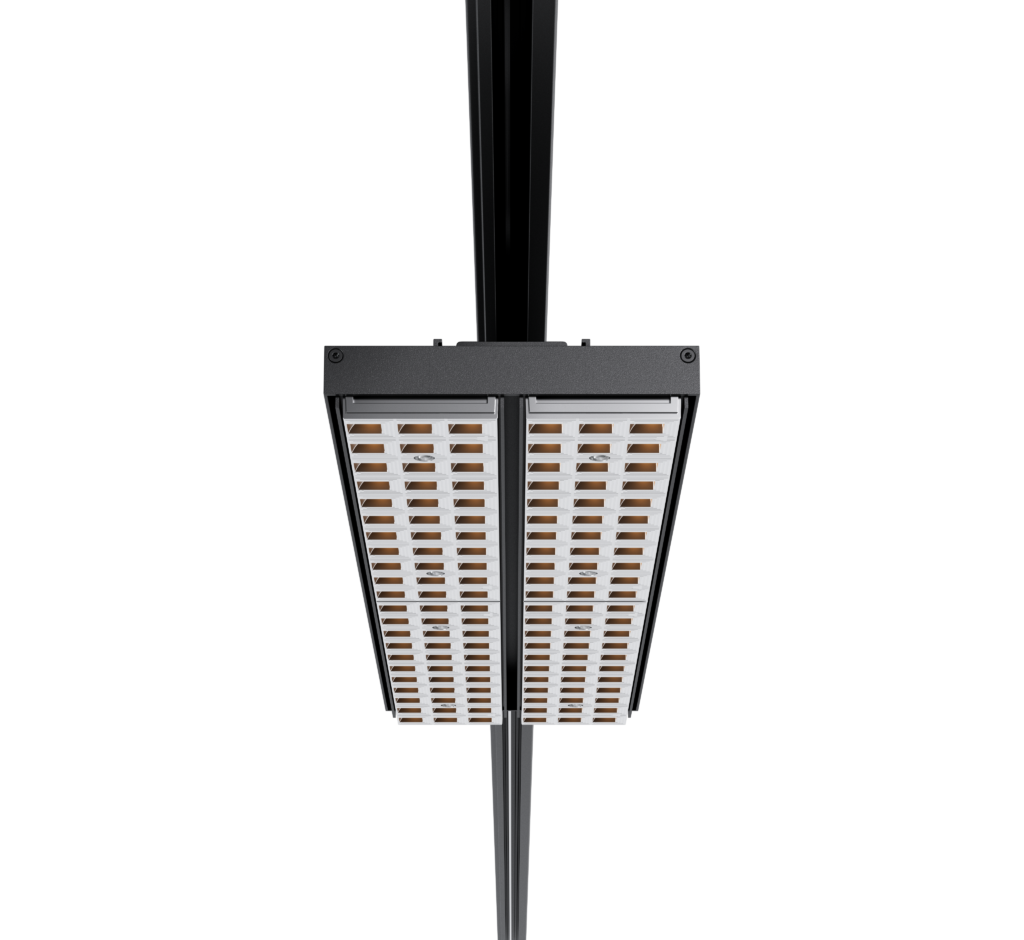

Plano 2.0 Space differs from the standard Plano 2.0 model by the use of reflector optics, providing focused light output and enhanced visual comfort for customers. The luminaire allows several types of optics to be combined within a single housing, making it possible to address various lighting tasks. Thanks to its high output, the number of luminaires in a project can be reduced without loss of lighting efficiency.
Application area
There are various applications for this luminaire, such as shopping malls, showrooms, offices, and administrative premises. Also, this lamp will be ideally suited for small rooms.
Specification
- Luminaire type Linear Light
- Application areas General and accent lighting
- Luminous flux class 3000 lm - 7500 lm
- Light color 3000 K, 3500 K, 4000 K
- CRI 80
- Beam angle 90°

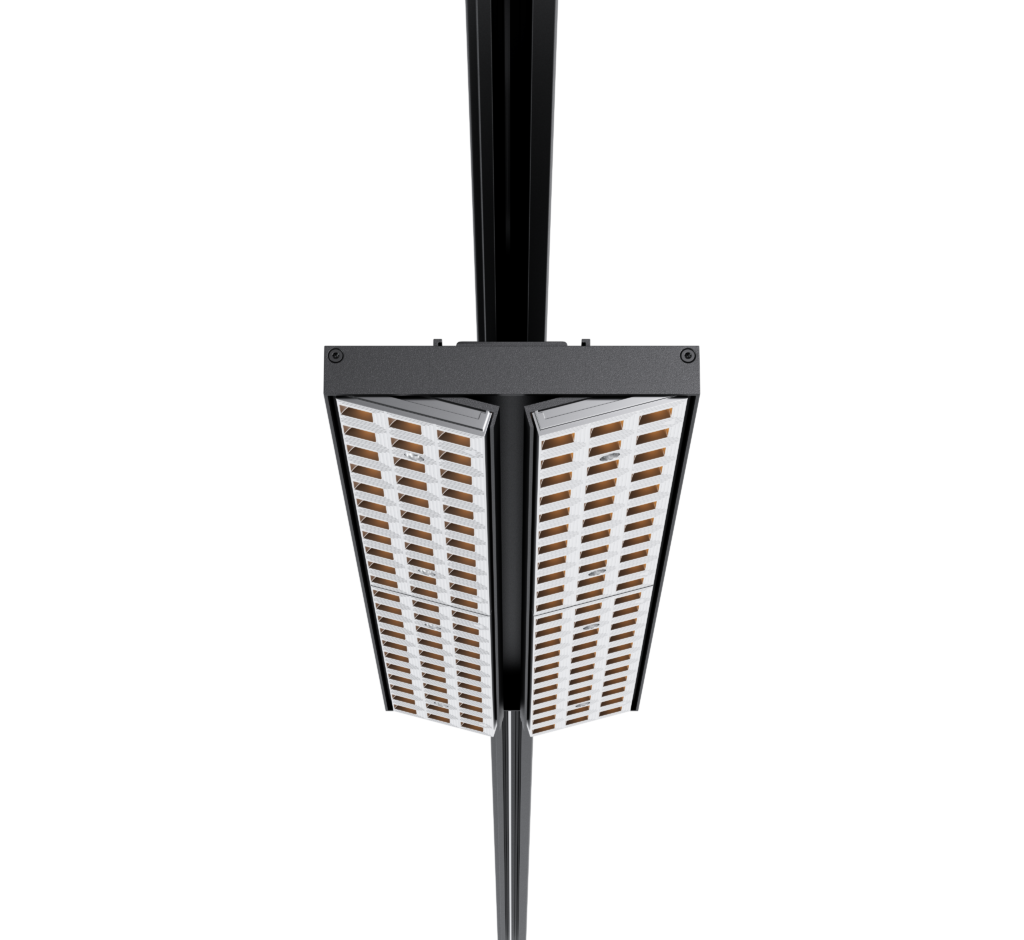

- Tilt angle 18°
- Protection class IP21
- Certifications UA, CE, UKCA
- Life time 50,000 hours (L80B10)
- Warranty 5 years / 50,000 hours
Materials
- Body Aluminium
- Optical element PC
- Weight 2.5 kg
Electrical equipment
- Power supply LED driver (DALI on request)
- Lighting technology LED SMD 2835
- Input voltage 230 V, 50 Hz
- Cooling Passive
- Power factor 0.95
Mounting type
- Mounting 3P track mounting (3PH)
