Mio 3PH
Type
Category
Color
- Black RAL 9005, White RAL 9016, On request

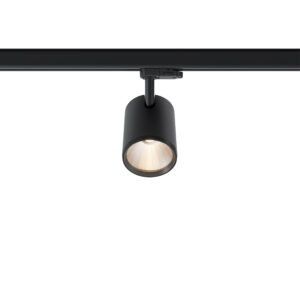

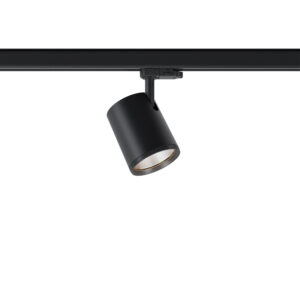

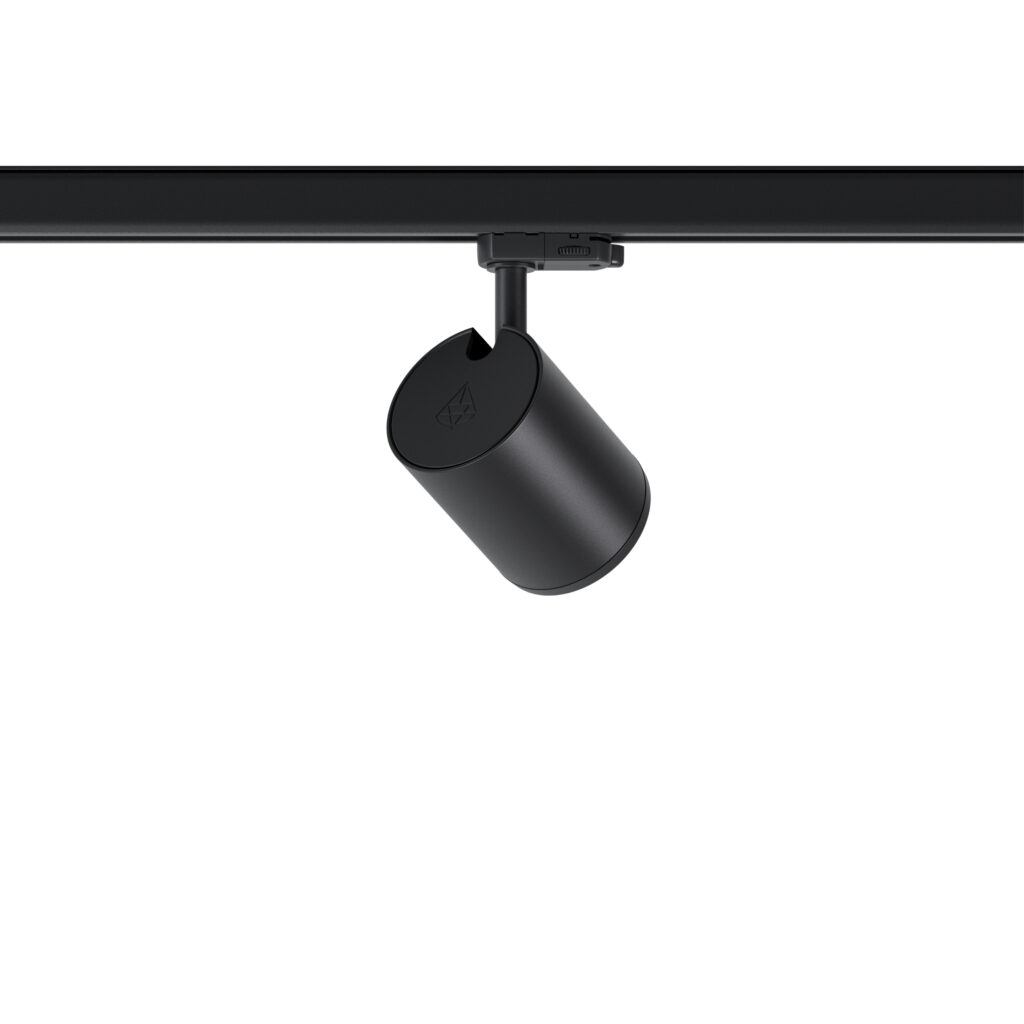

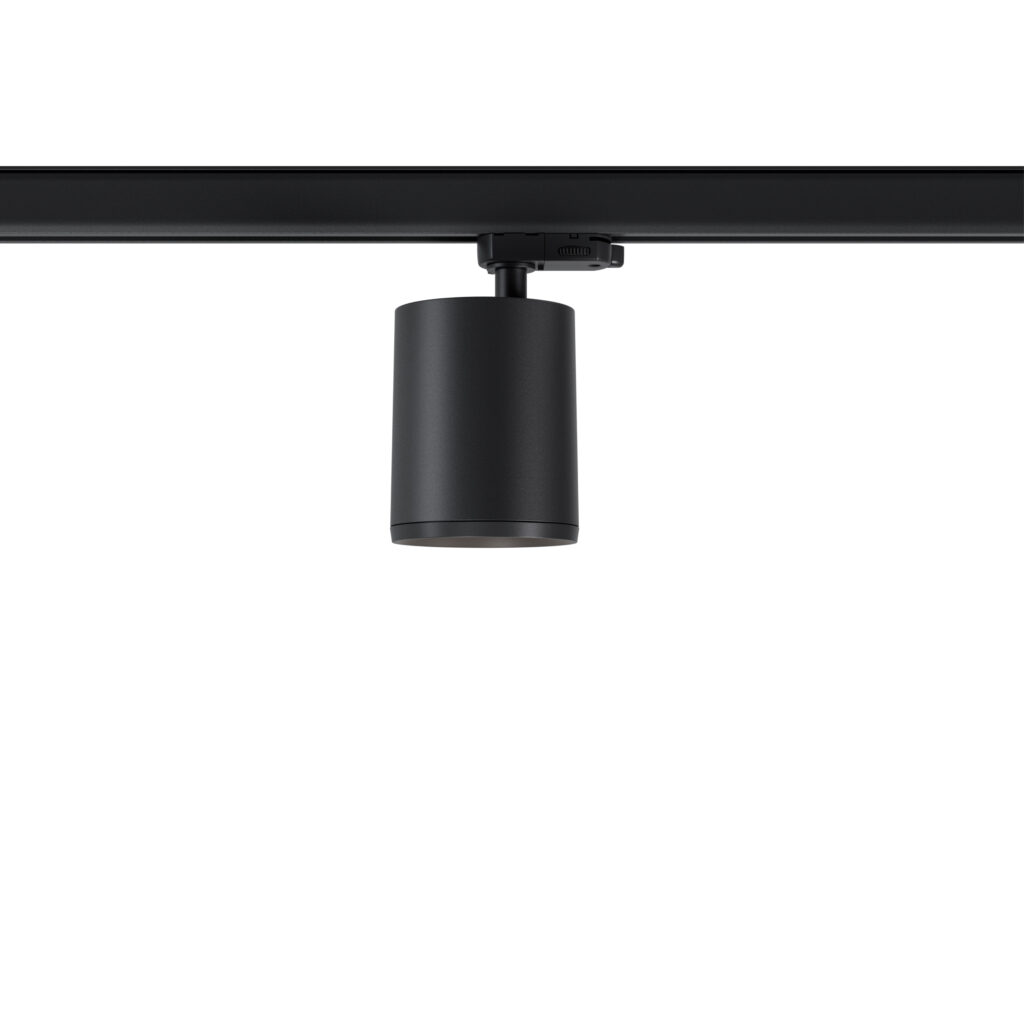

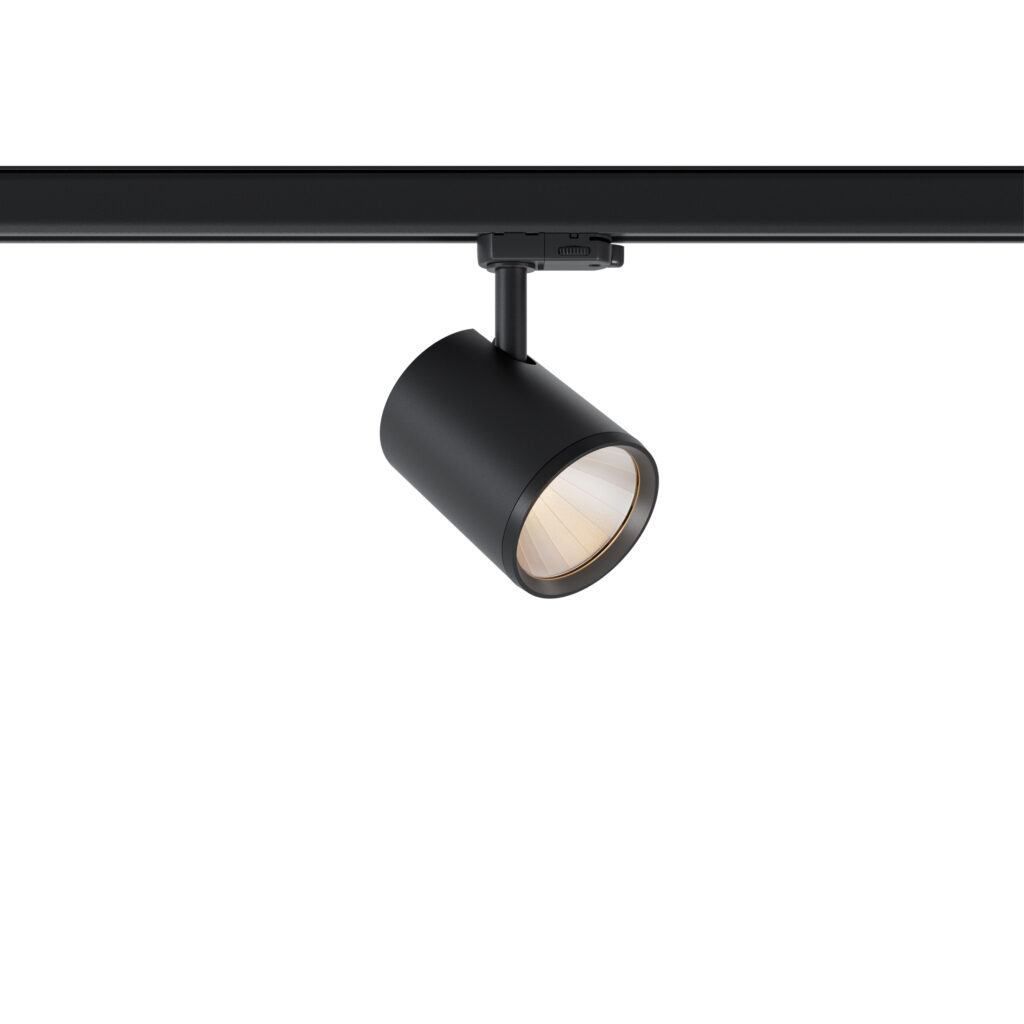

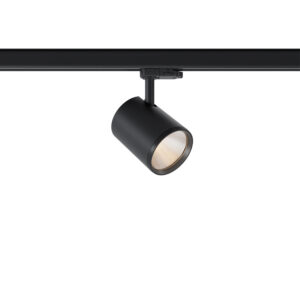

Mio 3PH is a modern, compact accent luminaire. It is an ideal solution for spacious stores, showrooms and retail halls. Thanks to its three-phase track connection, the luminaire allows the load to be distributed across three circuits, which is particularly important in spaces with a large number of luminaires. An optional version with a segmented MIRO-Silver® reflector (S designation) is available, increasing luminous efficiency up to 97%.
Application area
The MIO luminaire will satisfy the most demanding consumers and is suitable for various interiors - bars, restaurants, shopping centers, office, and residential premises, as well as for all types of shopping areas.
Specification
- Luminaire type Spot Light
- Application areas Accent lighting
- Light colour 2700 K, 3000 K, 3500 K, 4000 K
- CRI 80-90
- Protection rating IP21
- Beam angle 15°, 15°S, 17°S, 24°, 36°, 36°S, 60°, 62°x34°, 34°x62°
- Certifications UA, CE, UKCA
- Life time 50,000 hours (L80B10)
- Warranty 5 years / 50 000 hours
Materials
- Body Aluminium
- Optic Aluminum reflector MIRO-Silver® + anti-glare ring
- Weight 0.54 kg
Electrical equipment
- Supply unit Integrated LED driver (DALI on request)
- Input voltage 230 V, 50 Hz
- Power factor 0.95
- Cooling Passive
- Lighting technology LED COB
Mounting type
- Mounting 3P track mounting (3PH)
