Chill
Type
Category
Color
- Black RAL 9005, White RAL 9016, On request

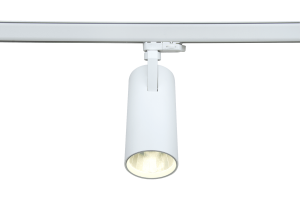

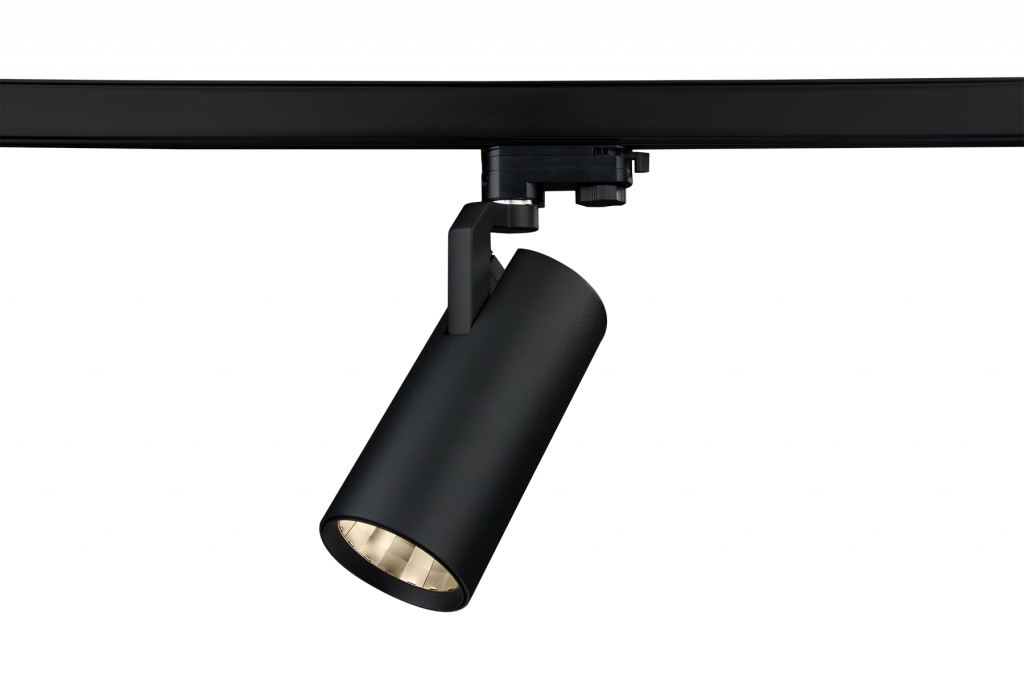

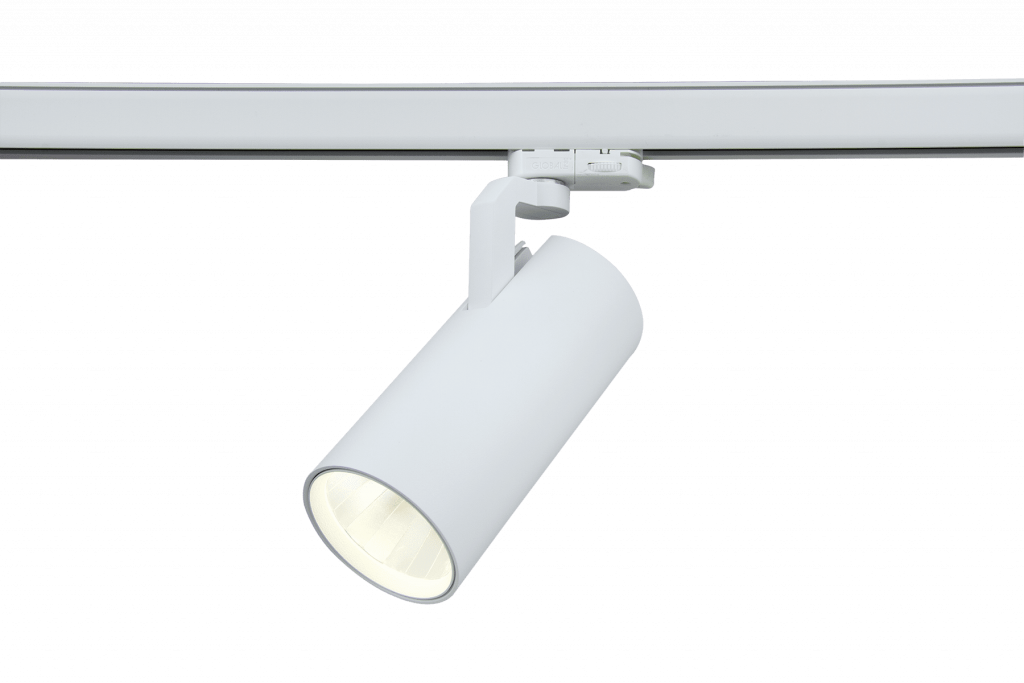

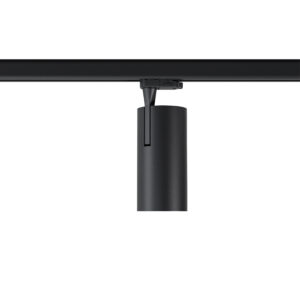

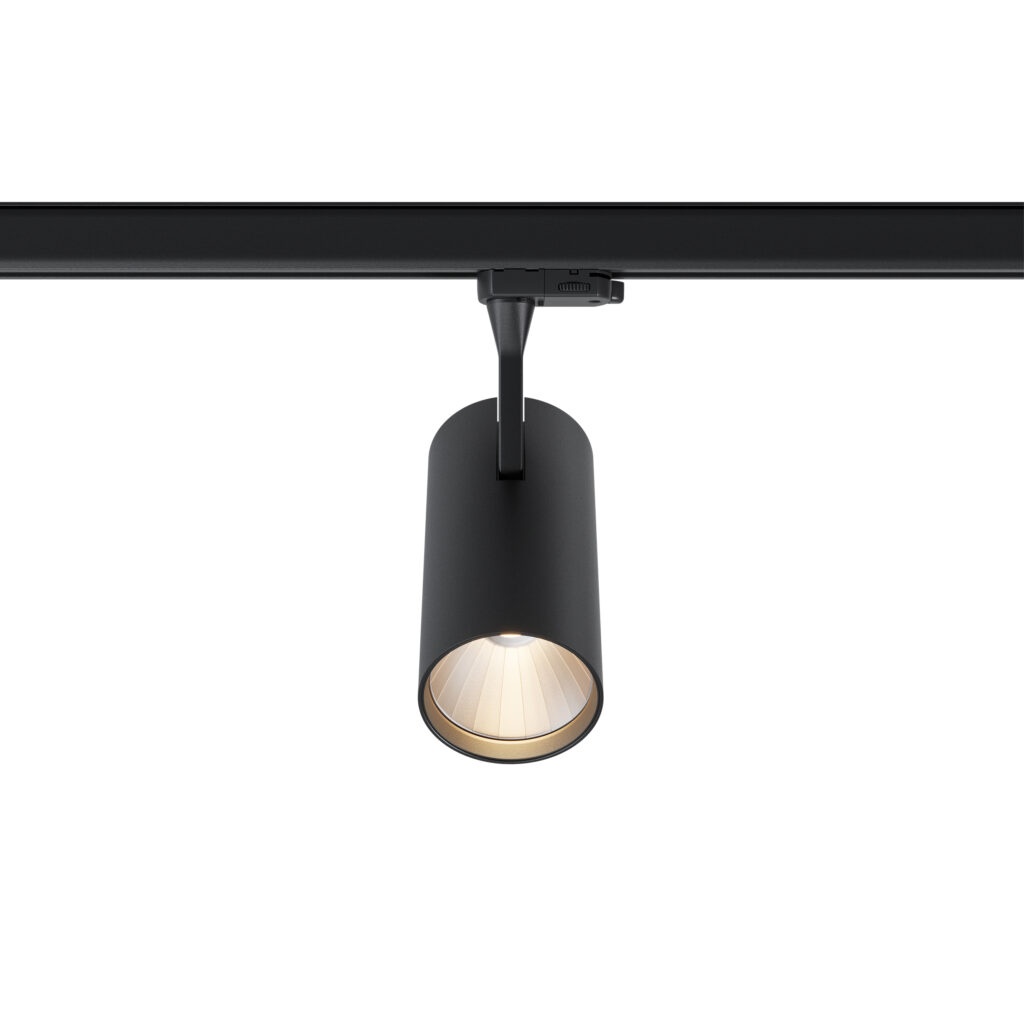

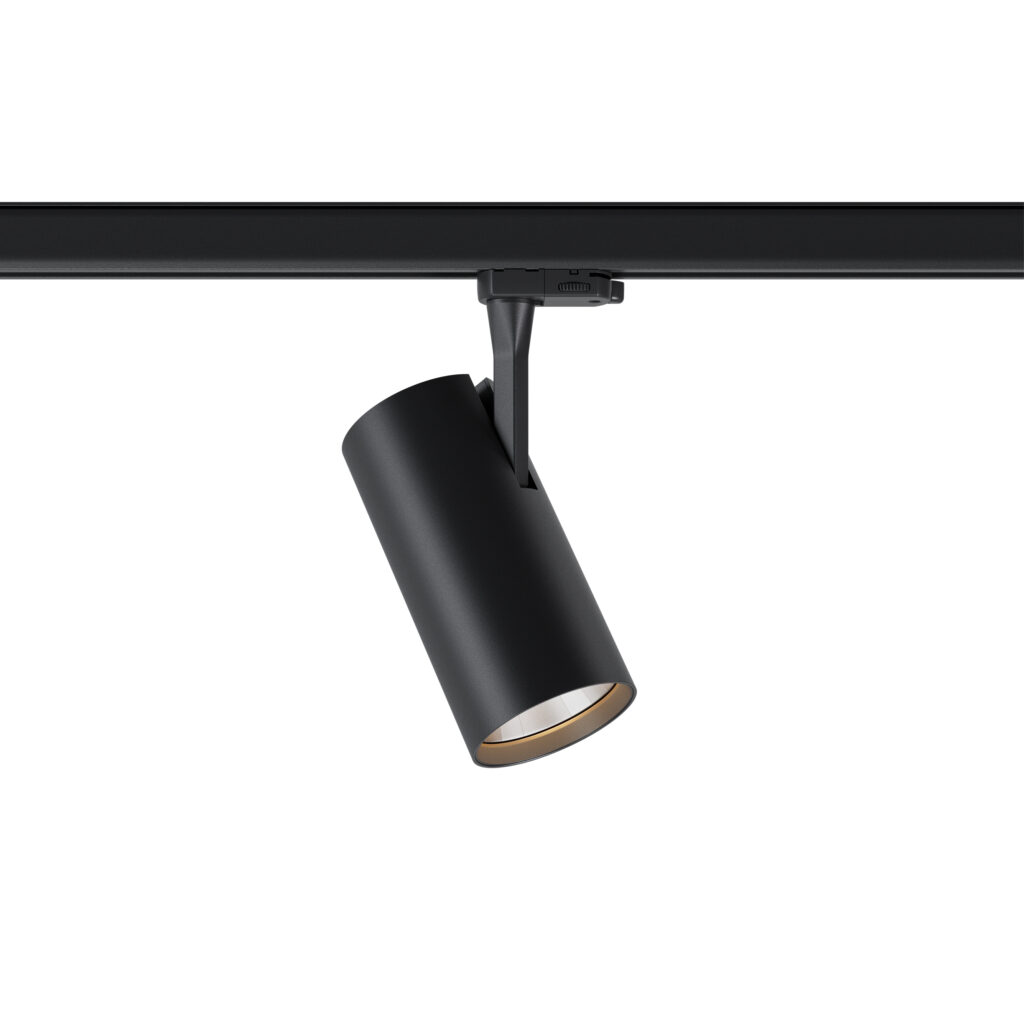

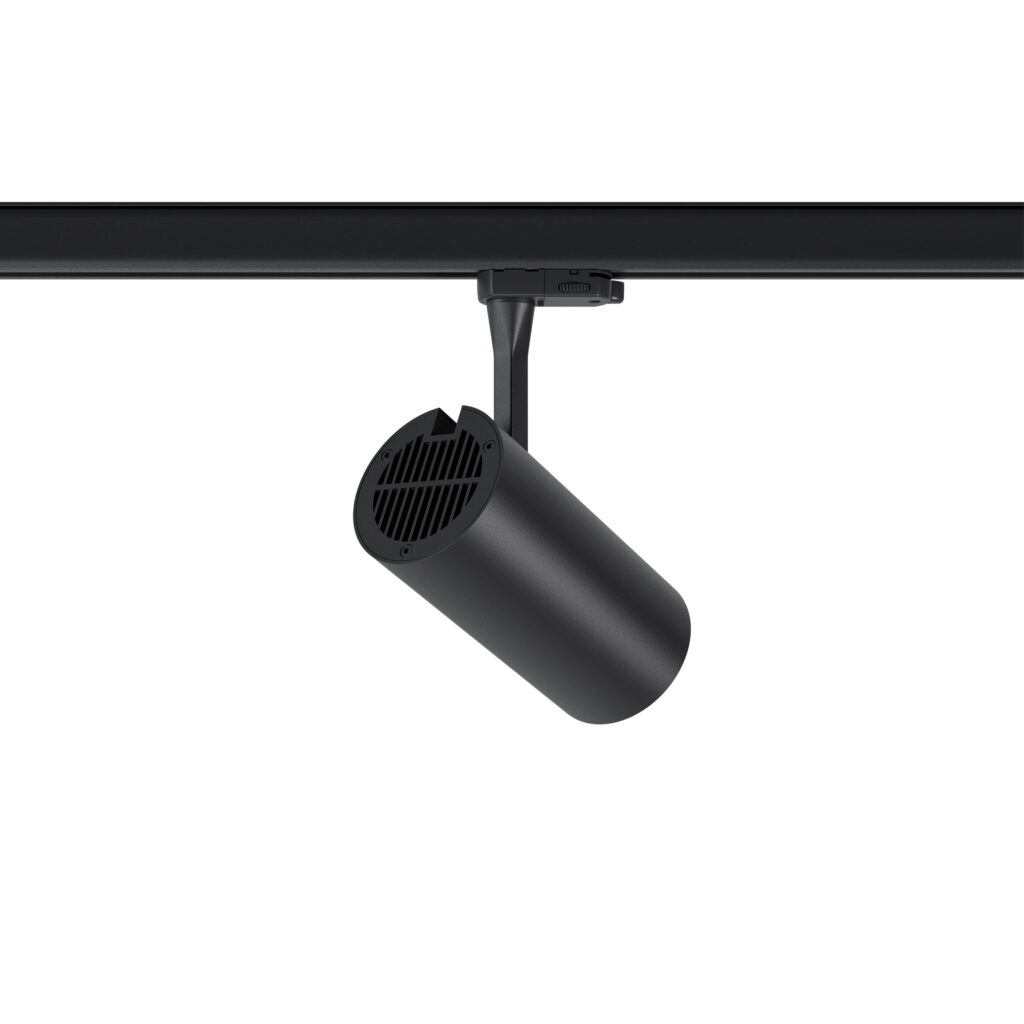

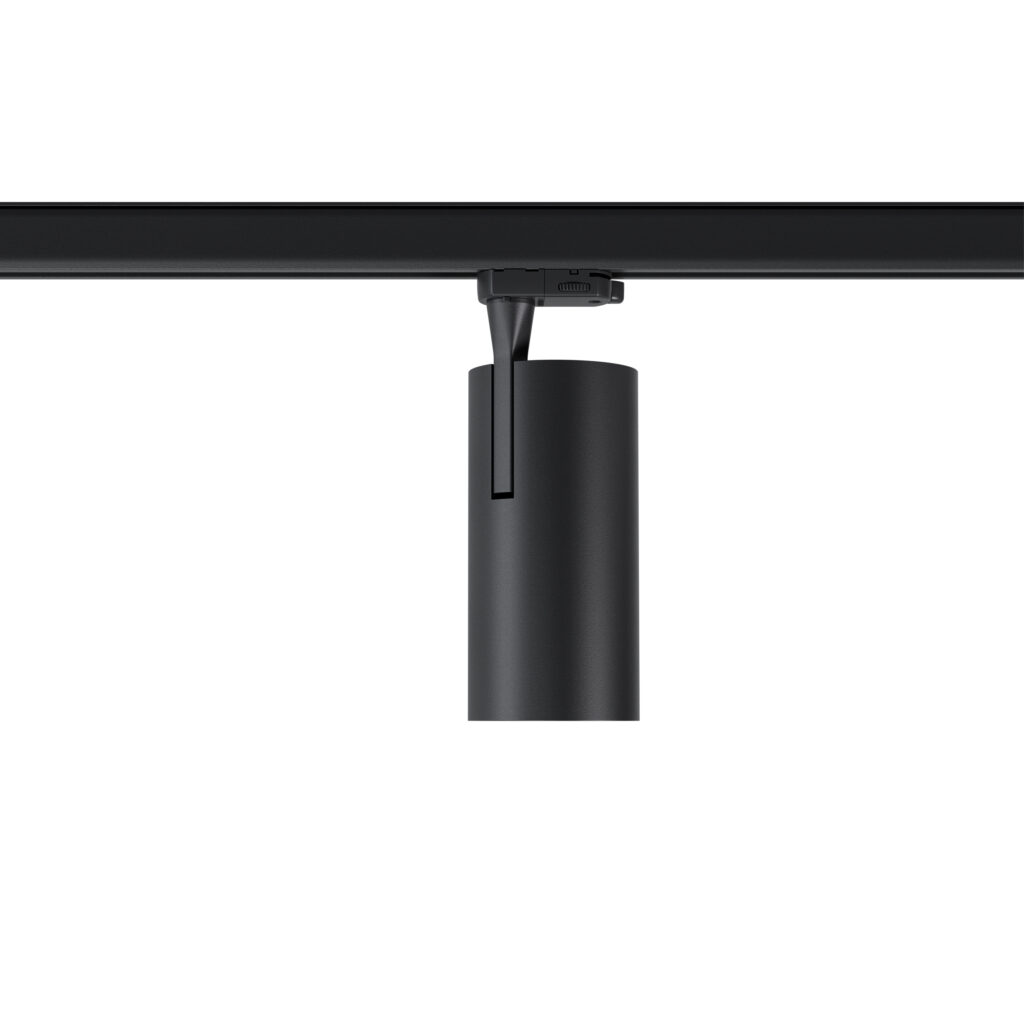

Chill – tracking spotlight Chill features a classic elegant design and laconic body. The reflector is pushed back with a built-in anti-reflective ring for a high level of visual comfort for the customer. At the same time, this luminaire guarantees high performance and efficiency.
Application area
This luminaire is ideal for a variety of interiors - bars, restaurants, shopping centers, office, and residential areas, as well as for all types of shopping areas.
Specification
- Lumen category 3200–6040 lm
- Light colour 2700 K, 3000 K, 3500 K - True White, 3500 K - Bright Colour, 3500 K, 4000 K, B+V+C, M, M+F
- CRI 80-97
- Pan/tite range 355/90°
- Protection rating IP20
- Beam angle 18°,24°,36°
- Certificates UA, CE
- Life time 50 000 hours L80B10
- Warranty 5 years / 50 000 hours
Materials
- Body Die-cast aluminum
- Body colour Black RAL 9005, White RAL 9016, On request
- Optic MIRO-Silver® aluminum reflector
Electrical equipment
- Supply unit LED driver, LED driver DALI on request
- Lighting technology LED COB
Mounting type
- Mounting Power Track
