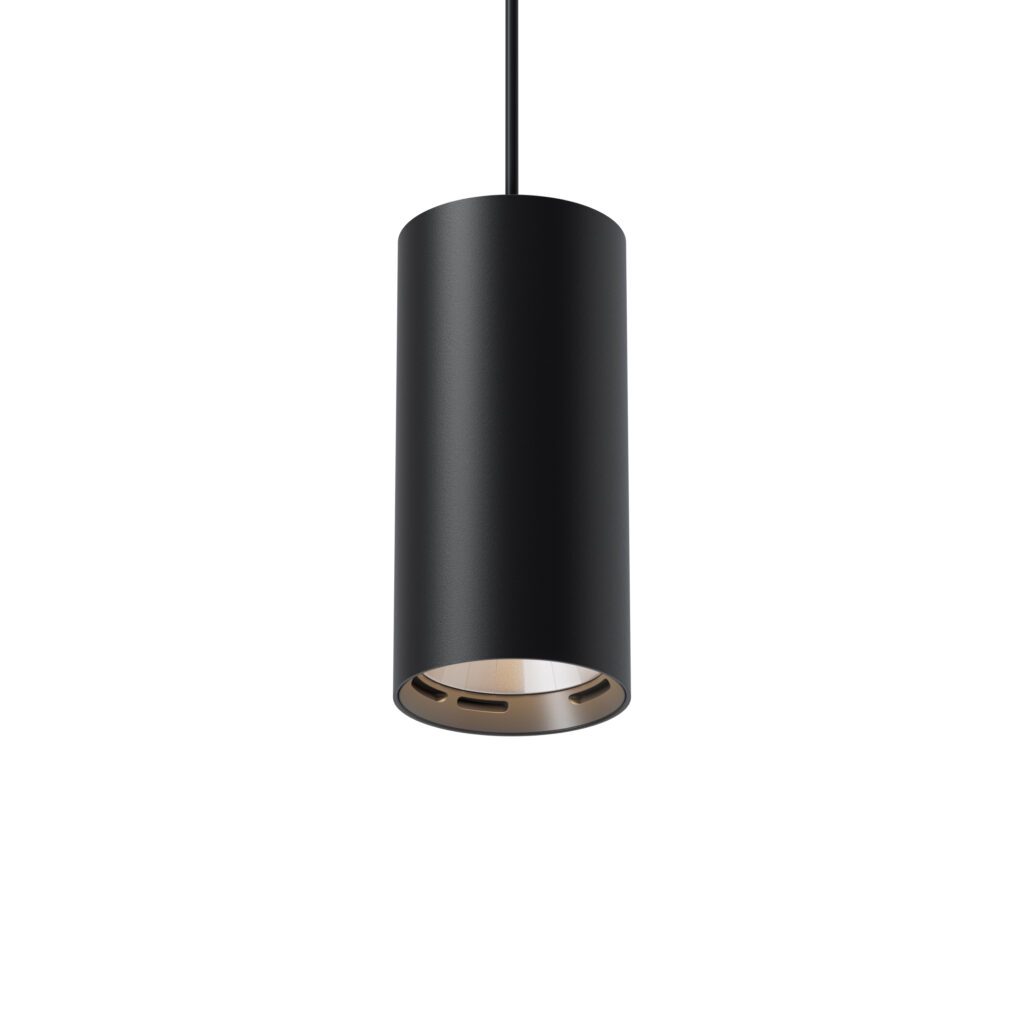

Chill X SP3PH
Category
Color
- Black RAL 9005, White RAL 9016, On request
The versatile Chill X SP3PH is designed for track lighting systems in shops and retail halls. Its track-mounted suspension adapter allows for easy repositioning and height adjustment, ensuring effective illumination of products. The focused light highlights product details, making them more visually appealing to customers.
Application area
Chill X SP3PH is designed for accent lighting in shops and retail halls, especially for product display zones like culinary counters (cheese, fish and other fresh products).
Specification
- Luminaire type Spot Light
- Application areas Accent lighting
- Light colour 2700 K, 3000 K, 3500 K, 4000 K (special spectra for food also available)
- CRI 80-90
- Protection rating IP21
- Beam angle 15°, 15°S, 17°S, 24°, 36°, 36°S, 60°, 62°x34°, 34°x62°
- Certifications UA, CE, UKCA
- Life time 50,000 hours (L80B10)
- Warranty 5 years / 50,000 hours
Materials
- Body Aluminium
- Optic Aluminum reflector MIRO-Silver®
- Connection WAGO connector, 3-phase adapter
Electrical equipment
- Supply unit Integrated LED driver (DALI on request)
- Lighting technology LED COB
- Power factor (cos φ) 0.95
- Cooling Passive
Mounting type

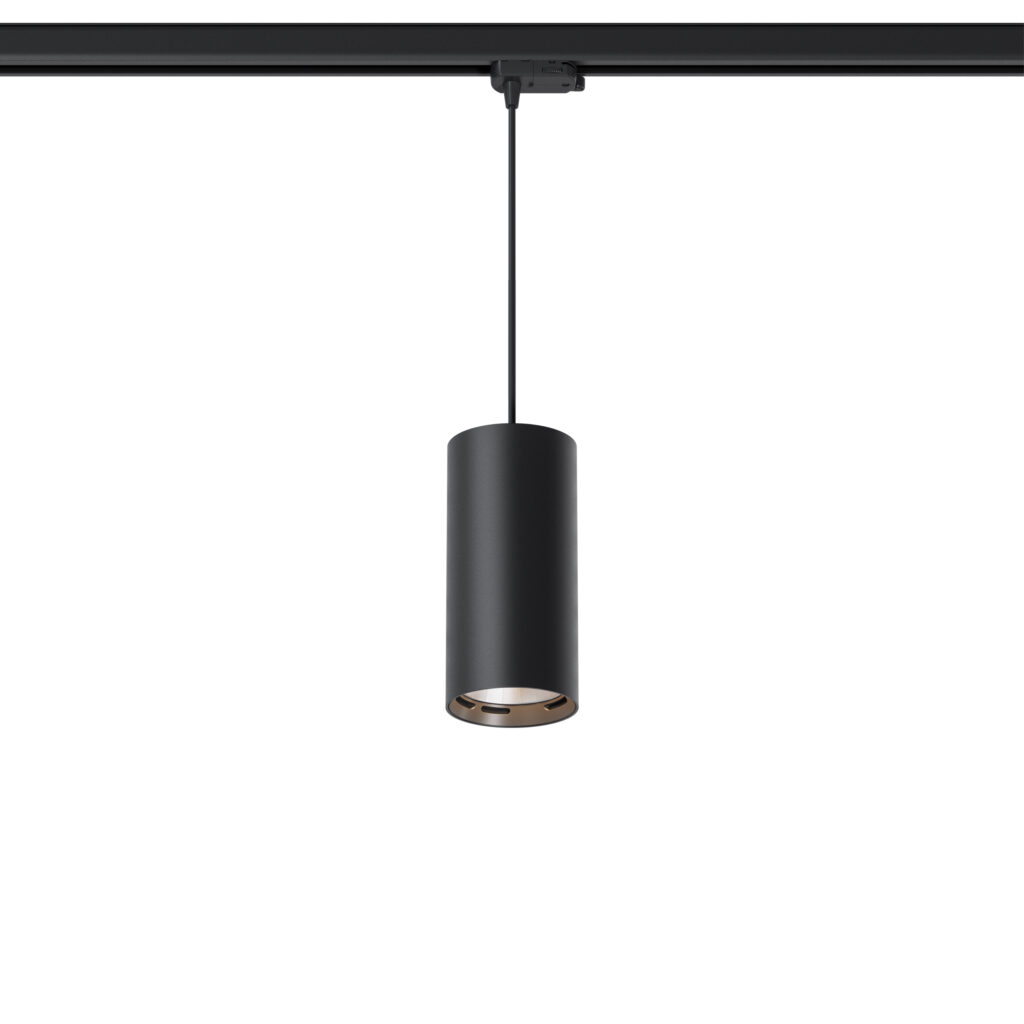

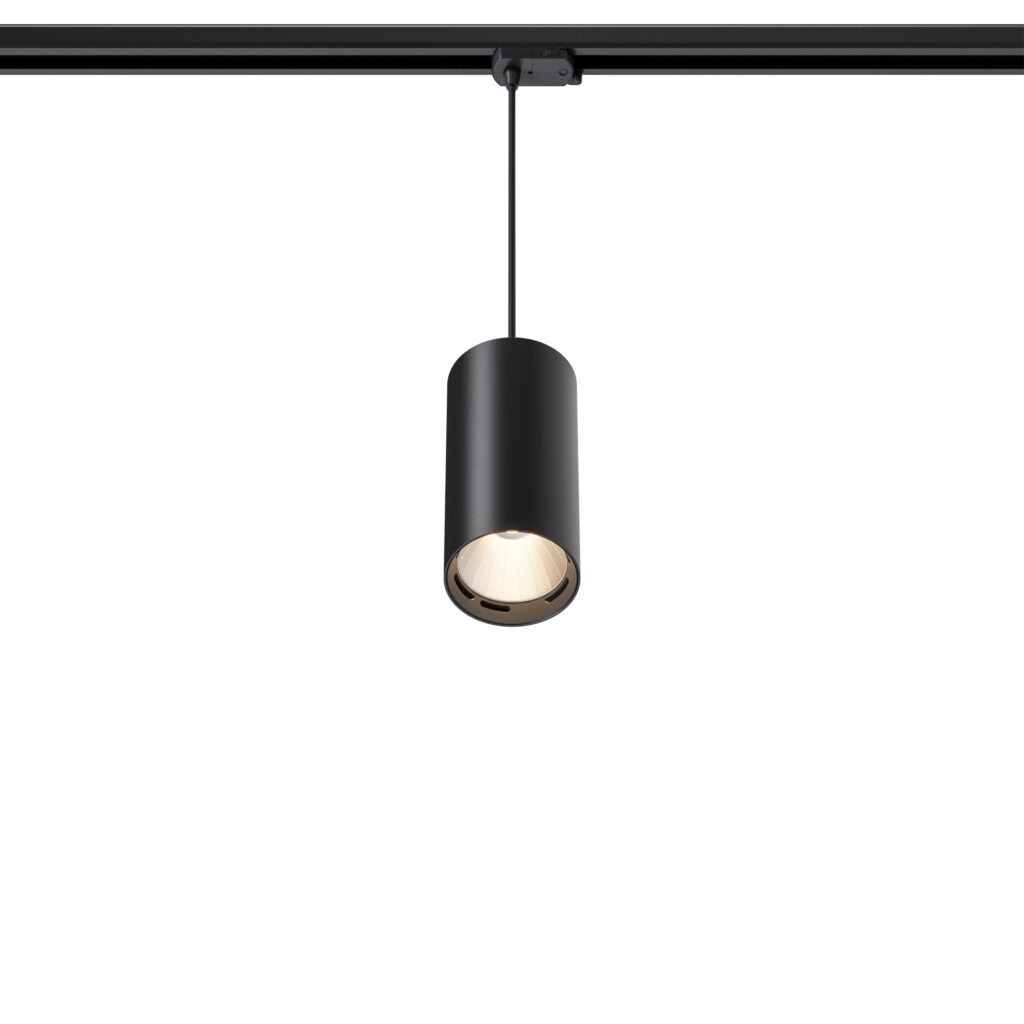

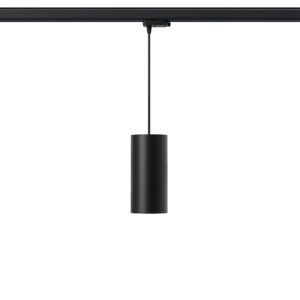

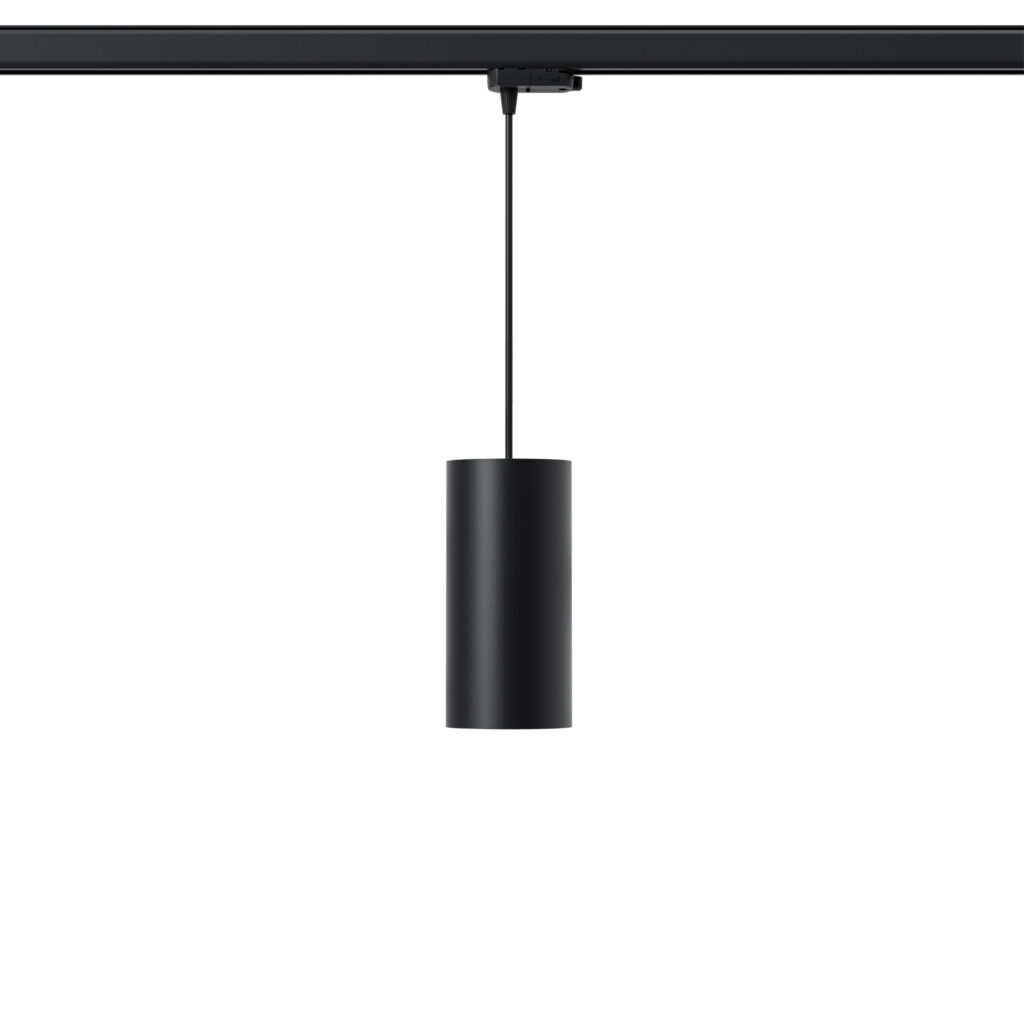

- Mounting 3P track mounting with suspension adapter (SP3PH)
