Tor
Type
Color
- Black RAL 9005, White RAL 9016, On request

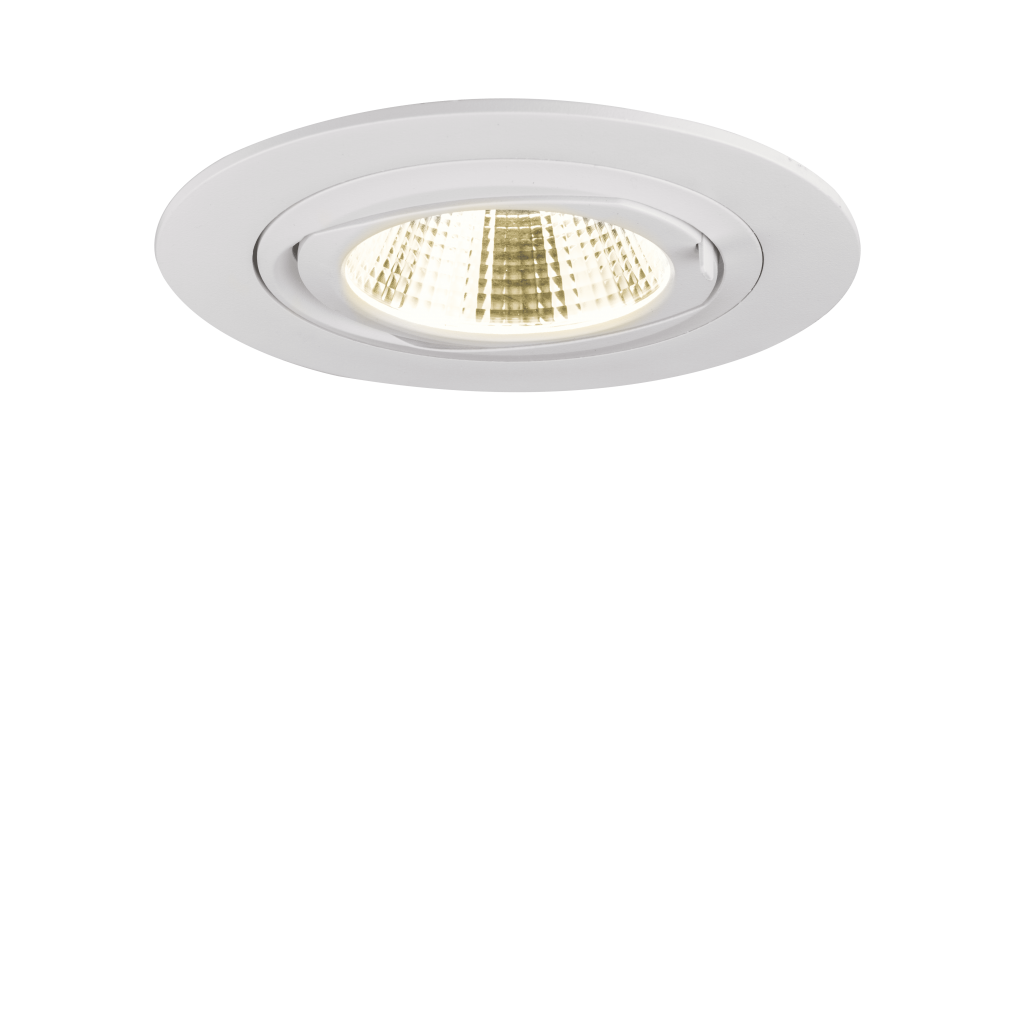

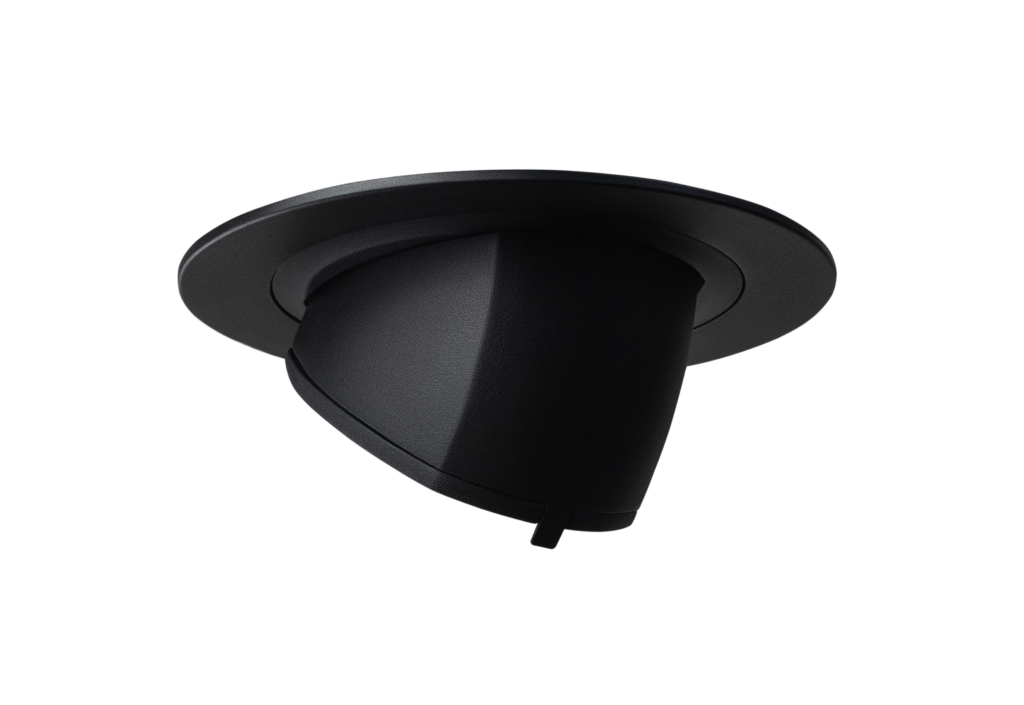

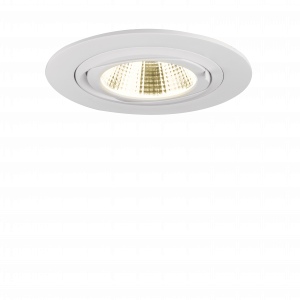

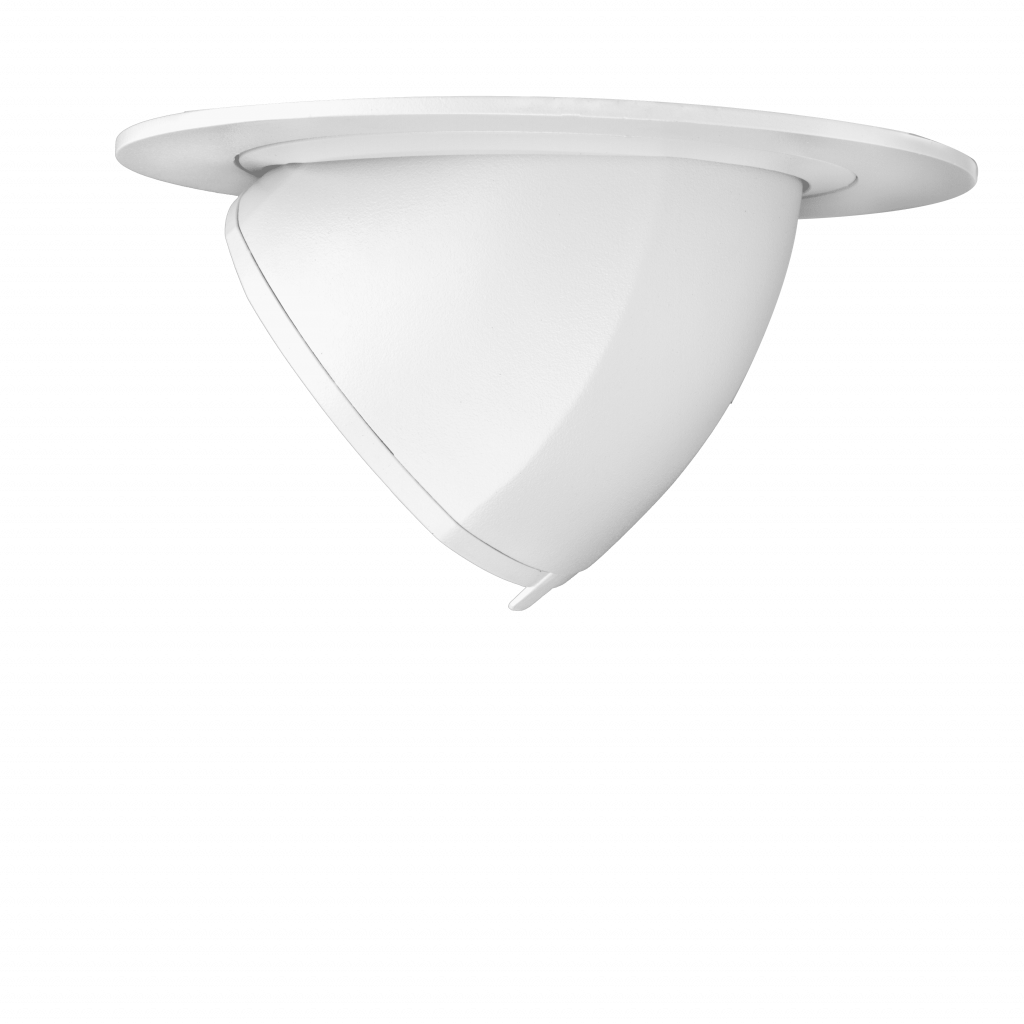

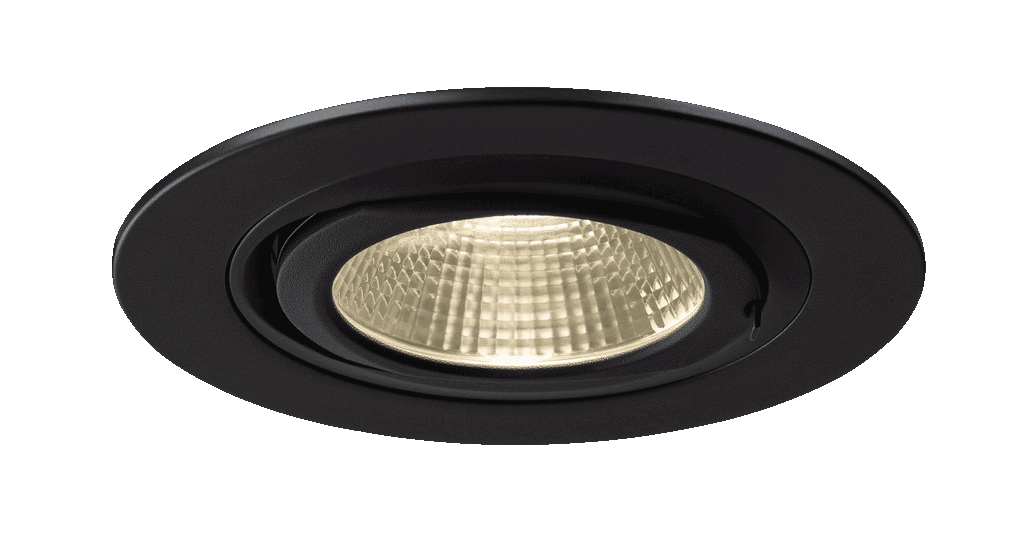

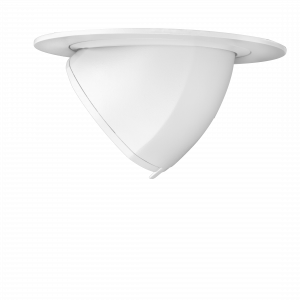

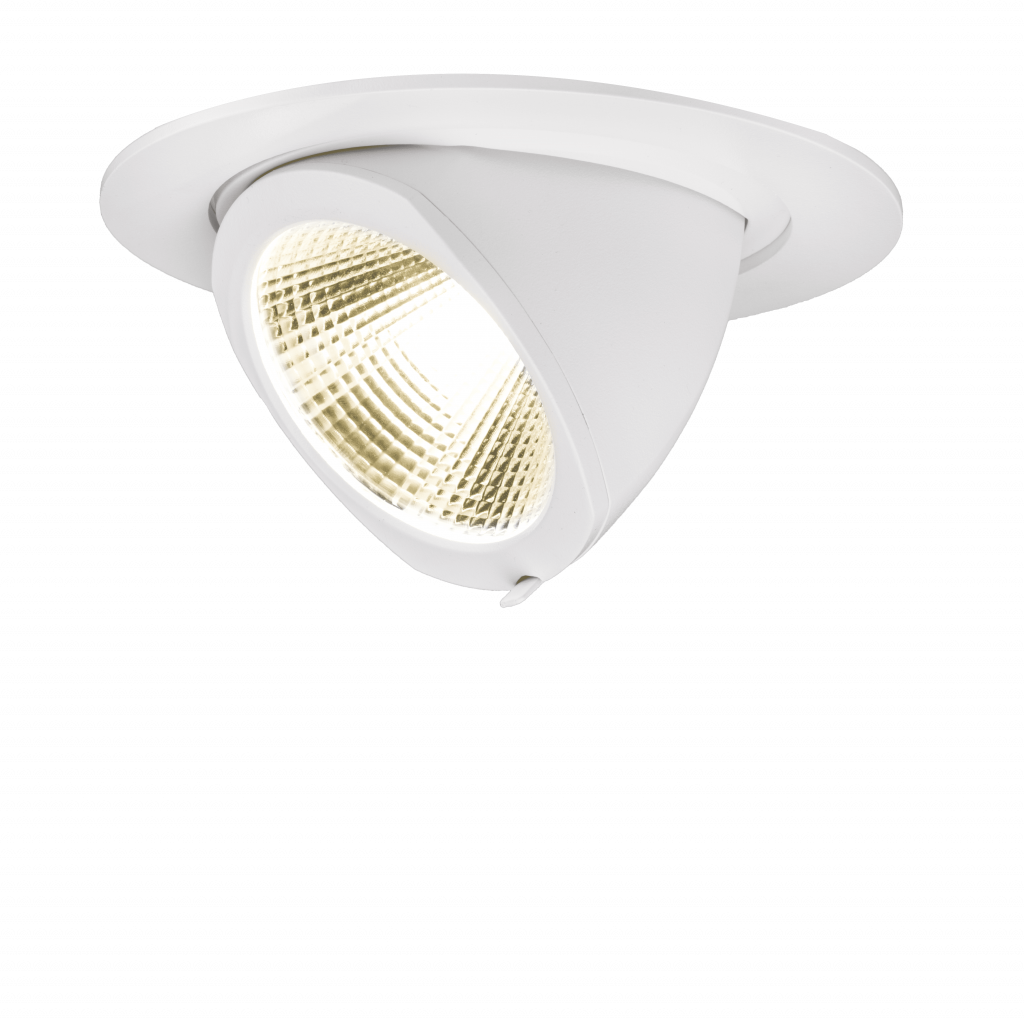

Tor is a recessed luminaire designed for both general and accent lighting, offering impressive performance characteristics. It is powerful and highly flexible, while remaining compact and easy to use. The luminaire design allows it to be rotated to highlight specific products or used as part of general lighting, integrating seamlessly into the ceiling.
Application area
The lamp is used in sales areas of various shops and offices, suitable for lighting phytowalls, galleries, car dealerships, and hotels. Also, when using shifted spectra, the luminaire is perfect for lighting products that require special lighting.
Specification
- Luminaire type Recessed luminaire (light module)
- Application areas General and accent lighting
- Light colour 2700 K, 3000 K, 3500 K, 4000 K + special spectra for food
- CRI 80-90
- Beam angle 15°, 15°S, 17°S, 24°, 36°, 36°S, 60°, 62°x34°, 34°x62°
- Pan/tite range 350/45°
- Protection rating IP21
- Certifications UA, CE, UKCA
- Life time 50,000 hours (L80B10)
- Warranty 5 years/ 50 000 hours
Materials
- Body Die-cast aluminium
- Optic Aluminium MIRO-Silver® reflector
- Connection WAGO Terminals
- Weight 0.8 kg
Electrical equipment
- Supply unit LED driver
- Lighting technology LED COB
- Input voltage 230 V, 50 Hz
- Cooling Passive
- Power factor 0.95
Mounting type
- Mounting Built-in (recessed), spring mounting brackets
